聚合物锂电(Li-Poly)、镍氢(NiMh)电池(组)、充电器、(无刷)马达、电子调速器、电量显示器等
技术参数:
Operating voltage range: 5.0V-36V
Balance port 1st string Input voltage range: 0.8V-15V
Balance port 2-8 string Input voltage range: 0.8V-4.8V
Number of batteries supported: 1-8S
Voltage measurement accuracy: ± 0.005V @ 4.2V
Cell balance accuracy: <0.005V

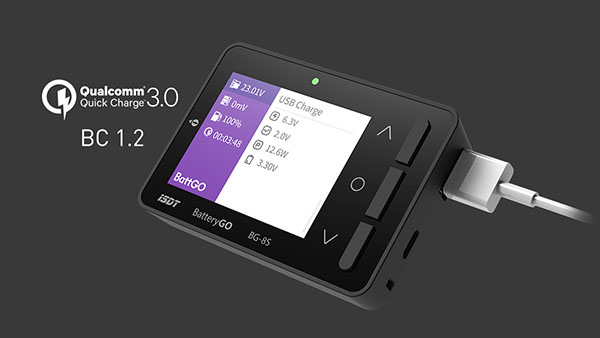

Supports USB charging: QC 2.0 / 3.0, BC1.2, maximum output 12V / 2A
Support for smart batteries: Set the charge and discharge parameters, query the battery information and use
Supported battery types: (1-8S) / LiPo (1-8S) / LiFe (1-8S)
Lilon (1-8S) / NiMH / Cd (1-10S)
Display Type: 2.4 color 320 × 240 26 million color IPS LCD
Dimensions : 80 X 55 X 19 mm
Weight: 59g
附 件:
1 x ISDT艾斯特 BG-8S 电池 智能电显
