产品编号: SUPF3FT
客户评论:   查看评论.
上架日期: 2017-06-08
最后更新: 2017-06-14
可打印页面  添加到收藏夹
关键词: Super_S  F3飞塔  Super_S  F3飞控  集成OSD  +  Super_S  BS06D  四合一电调

Super_S F3飞塔 / Super_S F3飞控 集成OSD + Super_S BS06D 四合一电调

特  征:
Features:
-Support programmable LED Sprit (turn off transponder before using)
-Support BLheli/BLHELI_S suite Pass-through ready
-Support PPM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
-Default Dshot600
-Built-in voltage detection, alarm
-Built-in Betaflight-OSD
-Buzzer solder pin
-LED_STRIP connector
Package included:
技术参数:
Flight controller

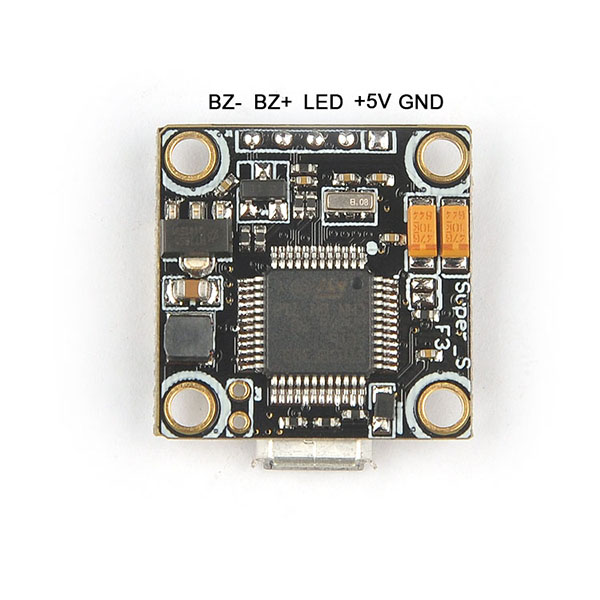

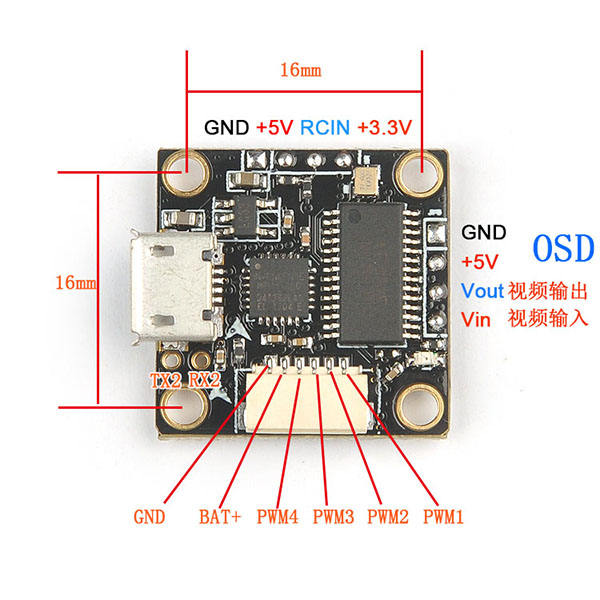

Item name: Super_s F3 flight controller board
Size: 20*20mm
Mounting hole: 16*16mm
Diameter: 2mm
Weight: 1.9g
Processor: STM32F303CCT6 (72MHZ, 256K FLASH)
Sensor: MPU-6000 ( connected by SPI)
Firmware version: betaflight_3.1.0_OMNIBUS
Built-in ESC: 5V/0.5A
Receiver: PPM, Spektrum 1024/2048, SBUS, IBUS, XBUS, SumD SumH RX etc.
Power supply: 2S lipo battery ( 6.5V-8.4V)
Suitable for 60mm-80mm mini brushless FPV Quadcopter frame
ESCprefix = "o" ns = "urn:schemas-microsoft-com:office:office"

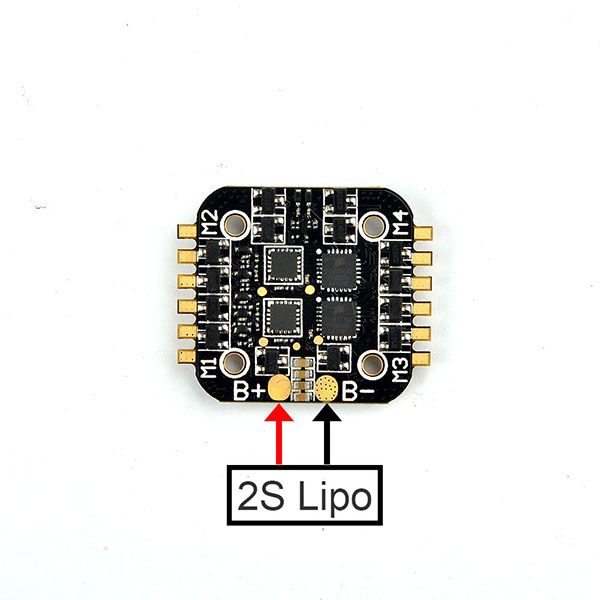

Item name: Super_s 4 In 1 6A BLHeli_S ESC

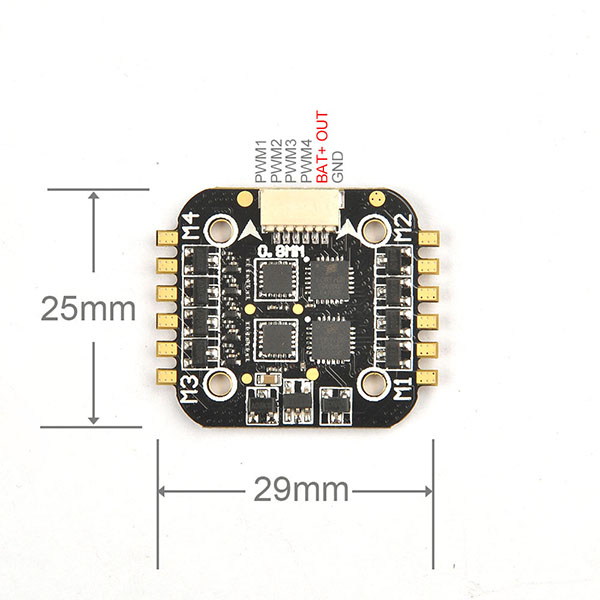

Size: 25x29mm (includes solder pad)
Mounting holes: 16x16mm, φ2mm
Weight: 3g
Input voltage: 2S lipo
Con. Current: 6A
Peak Current: 10A (5S)
Firmware: BLHELI_S
Processor: SILABS EFM8BB21F16G
BEC: NO
Driver: 3 in 1 MOS
Supports Dshot Oneshot multishot





附  件:
1 x Super_S F3 飞控
1 x Super_S BS06D 4合1电调
1 x 连接线
8 x 尼龙柱
8 x 螺丝
8 x 螺母
