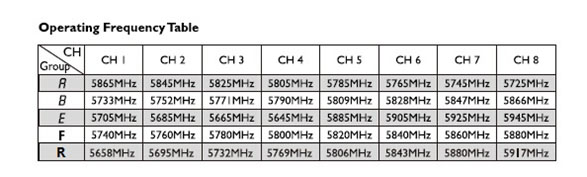

| 1 | Receiving frequency: | ISM 5.6GHz-5.95GHz 40CH |
| 2 | Operating Voltage: | 7.0V-28.0V |
| 3 | Supply current: | <300mA/12VDC |
| 4 | Video Output Level: | 1V±0.2Vp-p/75Ω |
| 5 | Aidio Output Level: | 0.5～2.0Vp-p/10KΩ |
| 6 | TV System: | PAL/ NTSC / SECAM(AUTO) |
| 7 | Wireless Receiver Sensitivity: | <-92dBm（15dBuV） |
| 8 | Antenna Connector: | SMA Connector |
| 9 | Weight: | 212g(dvr) |
| 10 | Dimensions(L*W*H): | 60*150*27.5mm |
| 11 | Operating Temperature: | –10℃～+85℃ |
