产品编号: F4-EVO
客户评论:   查看评论.
上架日期: 2017-07-19
最后更新: 2018-02-02
可打印页面  添加到收藏夹
关键词: 穿越机飞控  SP  racing  F4  EVO  2-6S电压输入  内置BEC

穿越机飞控 SP racing F4 EVO / 2-6S电压输入 内置BEC

特  征:
Software feature:
3 primary flight modes: Acrobatic, Angle and Horizon
Extensive control and switch configuration
Battery Monitoring and Warnings
Signal Strength Monitoring (RSSI)
Failsafe system
Altitude Hold Mode
Heading Hold Mode
In-flight tuning
Customizable LED colors
Android phone support (via EZ-GUI GCS)
技术参数:
Specification:

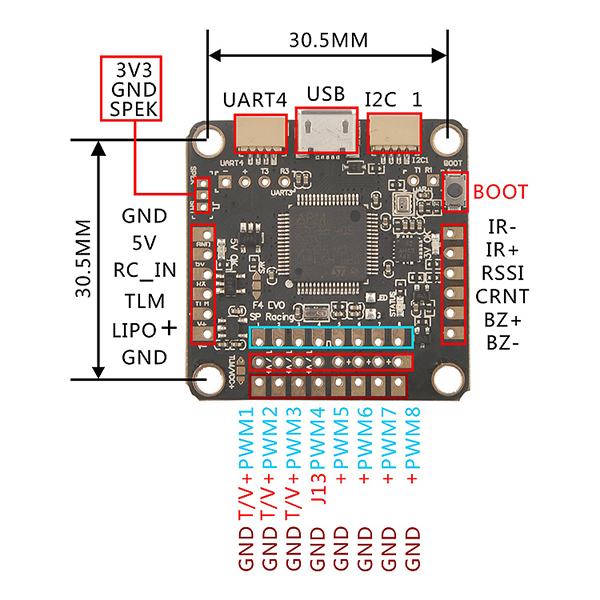

36x36mm board with 30.5mm mounting holes
Weight ~5 grams
STM32405 CPU, 168Mhz inc FPU
MicroSD card slot (SD/SDHC, upto 32GB)
ICM20602 accelerometer/gyro (connected via SPI)
BMP280 barometer
Built-in inverters for TELEMETRY and SERIAL RX.
MicroUSB socket for configuration and ESC programming
3 LEDs for 5V, 3V and STATUS (Green, Blue, Red)

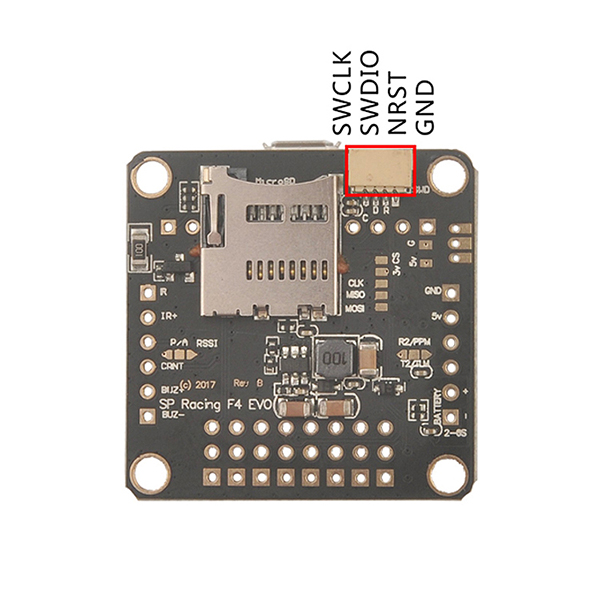

BOOT switch for easy firmware upgrades.
Supports Cleanflight, Betaflight and iNav firmware.
Work voltage 2s~6s
Built in 5V 1A BEC

附  件:
1 x F4EVO飞控
2 x 连接线
2 x 插针
